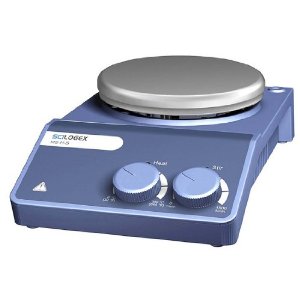

DragonMed Digital Magnetic Stirrer with Heating wiht compact design: －With constant stirring and intermittent stirring functions, circulation period and interruption time-period can be set －Two versions of hotplate, one version comes with a stainless steel hotplate, the other is porcelain enamel surface with excellent chemical resistance －Stirrer automatically adjusts for displacement of stirring bar. －Single temperature sensor，protection temperature can be set －Warning display indicating presence of any residual heat when the unit is switched off －Easy-to-read backlit LCD display －Fuzzy control and microprocessor technology guarantee maximum control accuracy －PC control via RS232 interface, software is available to control and document all measuring values via PC. Parameter can be set to carry out safety monitoring
|
|||
Main Data Description:
|
Model |
mg-H 1500/500 rs |
mg-H 1500/500 rs 2 |
|
Voltage [VAC] |
110/220 |
110/220 |
|
Frequency [Hz] |
50/60 |
50/60 |
|
Power [W] |
550 |
50 |
|
Stirring point position quantity |
1 |
1 |
|
Max. stirring quantity (H2O) [l] |
20 |
20 |
|
Max. magnetic bar [mm] |
80 |
80 |
|
Motor type |
Exterior rotor brushless motor |
Exterior rotor brushless motor |
|
Motor rating input [W] |
18 |
18 |
|
Motor rating output [W] |
10 |
10 |
|
Speed range [rpm] |
100-1500 |
100-1500 |
|
Speed display |
LCD |
LCD |
|
Speed display accuracy [rpm] |
1 |
1 |
|
Material |
Stainless steel（porcelain enamel） |
Stainless steel |
|
Dimension of heating plate [mm] |
φ135 |
φ135 |
|
Heat output [W] |
500 |
-- |
|
Heating rate (1L water) [K/min] |
6 |
-- |
|
Temperature range [℃] |
RT -340 |
-- |
|
Temperature display |
LCD |
-- |
|
Temperature display accuracy [℃] |
0.1 |
-- |
|
Control accuracy of heating temperature [℃] |
1 |
-- |
|
Adjustable safety circuit (heating plate) [℃] |
100-350 |
-- |
|
Adjustable safety circuit (reaction liquid) [℃] |
0.2 |
-- |
|
Temperature sensor of extraposition |
PT1000 |
-- |
|
Dimension (D×W×H[z1] ) [mm] |
280×160×85 |
280×160×85 |
|
Weight [kg] |
2.8 |
2.8 |
|
Permissible ambient temperature [℃] |
5-40 |
5-40 |
|
Permissible relative humidity |
80% |
80% |
|
Protection class acc. to DIN EN60529 |
IP42 |
IP42 |
|
RS232 interfaces |
Yes |
Yes |
